Keywords Casing and Tubing, Oil Casing, Gas Casing, Casing Pipe, API 5CT Casing, Seamless Oil Casing
Size Range
Casing OD: 4 1/2 inch ~ 20 inch (48.26mm ~ 508mm)
Tubing OD: 48.26mm ~ 114.3mm
Nominal Weight: 9.5 ppf ~ 169 ppf
Standard Length: R1, R2, R3
Standards & Steel Grades
(API 5CT) H40, J55, K55, M65, N80-1, N80-Q, L80 Type 1, L80 9Cr, L80 13Cr, C90, T95, P110, Q125
Connections
Casing Thread: SC (Short Round Thread), LC (Long Round Thread), BC (Buttress Thread)
Tubing Type: NU (Non-upset), EU (External Upset), IJ (Integral Joint)
Color Band
Color Band Marking Standard API 5CT color band identification (Green, White, Blue, Yellow) for accurate steel grade classification
Perhaps you would like to contact us via email. Please click on the link below to send us an emailinfo@hnssd.com

    Leave Your Requirement Information

  • close
  • Introduction
  • Specs & Sizes
  • Material Properties
  • Process & Finishing
  • Test & QC
  • FAQ

Introduction

API 5CT is the unified international standard for seamless casing and tubing used in oil and gas wells, specifying technical requirements including chemical composition, mechanical properties, manufacturing tolerance, thread connection, inspection test and delivery conditions for petroleum steel pipes.


Material Steel Grades & Applicable Working Conditions:
H40, J55, K55: Low-to-medium strength carbon steel grades, suitable for shallow oil & gas wells with low pressure and mild corrosion environments. They are cost-effective for conventional shallow well projects without severe acid gas erosion.

M65, N80 (Type 1, Q): Medium-strength carbon steel casing for medium-depth conventional wells under moderate pressure. N80 Q features improved quenched and tempered mechanical performance for higher tensile and collapse resistance than standard N80 Type 1.

L80 (9Cr, 13Cr): Corrosion-resistant alloy steel grades. 9Cr and 13Cr contain chromium elements to resist corrosion caused by carbon dioxide and trace hydrogen sulfide in formation fluid, specially applied to mildly sour oil and gas wells.

C90, T95, P110, Q125: High-strength premium steel grades with excellent collapse resistance, tensile strength and internal pressure resistance. Designed for deep wells, ultra-deep wells and harsh service environments featuring high pressure and severe corrosion, ideal for high-depth high-pressure sour gas wells.

All API 5CT casing and tubing are marked with standardized color bands on pipe ends for quick identification of steel grades, fully following API 5CT marking rules. Each steel grade corresponds to exclusive color codes, enabling field workers to distinguish pipe specifications without checking documents.

Color coding serves core functions:
Rapid grade identification: Differentiate H40, J55, N80, L80, P110, Q125 and corrosion-resistant 9Cr/13Cr alloy steel at a glance;
Avoid mixing up pipes during transportation, storage and downhole running;
Simplify inventory management and on-site construction inspection.

All color band marking is firm, wear-resistant and not easy to fall off under long-term outdoor storage. The matching color code chart clearly displays the corresponding color bands for every casing and tubing grade, acting as an intuitive reference for warehouse and oilfield operation teams.


Colour Code of Casing and Tubing

Grade

Colour Code Pipe (text)

Heat Treatment

Characteristics and Recommendation

J55

 J55-Grade-Colour-Code-Pipe

Normalized, Normalized and Tempered or quenched and Tempered

Tubing & Casing for general service

K55

 K55-Grade-Colour-Code-Pipe

Normalized, Normalized and Tempered or quenched and Tempered

Casing for general service

N80 Type 1

 N80-Type-1-Grade-Colour-Code-Pipe

Normalized or Normalized and Tempered

Tubing & Casing for general service

N80 Type Q



Quenched and Tempered

Tubing & Casing for general service

L80 Type 1

 L80-Type-1-Grade-Colour-Code-Pipe

Quenched and Tempered

Tubing & Casing with controlled yield range for sour well service

L80 9 Cr

 L80-9-Cr-Grade-Colour-Code-Pipe

Quenched and Tempered

Tubing & Casing for oil & gas wells affected by CO2 corrosion

L80 13 Cr

 L80-13-Cr-Grade-Colour-Code-Pipe

Quenched and Tempered

Tubing & Casing for oil & gas wells affected by CO2 corrosion

C90 Type 1

 C90-Type-1-Grade-Colour-Code-Pipe

Quenched and Tempered

Hight strength Tubing & Casing with controlled yield range for service in hydrogen sulphide environments

R95



Quenched and Tempered

High strength Tubing & Casing with controlled yield range

T95 Type 1

 T95-Type-1-Grade-Colour-Code-Pipe

Quenched and Tempered

High strength Tubing & Casing with controlled yield range for service in hydrogen sulphide environments

C110

 C110-Grade-Colour-Code-Pipe

Quenched and Tempered

High strength Casing with controlled yield range for service in hydrogen sulphide environments

P110

 P110-Grade-Colour-Code-Pipe

Quenched and Tempered

High strength Tubing & Casing for high pressure service

Q125 Type 1



Quenched and Tempered

Casing for deep well service



Specs & Sizes

The Casing and Tubing dimension table covers all standard OD sizes from 4 1/2" to 20" with matched nominal weights and standard R1/R2/R3 lengths. All data complies with API 5CT, providing intuitive size reference for oil well design and procurement. The Casing and Tubing dimension tolerance table is attached to specify permissible deviations of outer diameter, wall thickness, length and weight. All data complies with API 5CT, providing intuitive size and tolerance reference for oil well design and procurement.

Dimension Tolerances:

Casing Pipe

Item / Part

Tolerance

Outside Diameter

Pipe Body

D≤101.60mm, ±0.79mm

D≥114.30mm, +1.0%, -0.5%D

Coupling

±1%D

Wall Thickness

0, -12.5%t

Weight

Single Lengths

+6.5%, -3.5%

Carload Lots or Order Quantity

≥18144 kg (40000lb), 0, -1.75%

< 18144 kg (40000lb), 0, -3.5%


Dimensions table for casing

DN

O.D.
Inch

O.D.
mm

Weight
lb/ft

Weight
kg/m

W.T.
Inch

W.T.
mm

H40

J55 /
K55

L80

N80

C90 /
T95

P110

4 1/2

4.5

114.3

9.5

14.14

0.205

5.21

PS

PS




10.5

15.63

0.224

5.69

PSB




11.6

17.26

0.25

6.35

PSLB

PLB

PLB

PLB

PLB




13.5

20.09

0.29

7.37

PLB

PLB

PLB

PLB




15.1

22.47

0.337

9.56

PLB

5

5

127

11.5

17.11

0.22

5.59

PS




13

19.35

0.253

6.43

PSLB




15

22.32

0.296

7.52

PSLB

PLB

PLB

PLBE

PLB




18

26.79

0.362

9.19

PLB

PLB

PLBE

PLB




21.4

31.85

0.437

11.1

PLB

PLB

PLB

PLB




23.2

34.53

0.478

12.14

PLB




24.1

35.86

0.5

12.7

PLB

5 1/2

5.5

139.7

14

20.83

0.244

6.2

PS

PS




15.5

23.07

0.275

6.98

PSLB




17

25.3

0.304

7.72

PSLB

PLB

PLB

PLBE

PLB




20

29.76

0.361

9.17

PLB

PLB

PLBE

PLB




23

34.23

0.415

10.54

PLB

PLB

PLBE

PLB




26.8

39.88

0.5

12.7




29.7

44.2

0.562

14.27




32.6

48.51

0.625

15.88




35.3

52.53

0.687

17.45




38

56.55

0.75

19.05




40.5

60.27

0.812

20.62




43.1

64.14

0.875

22.22

6 5/8

6.625

168.28

20

29.76

0.288

7.32

PS

PSLB




24

35.72

0.352

8.94

PSLB

PLB

PLB

PLBE

PLB




28

41.67

0.417

10.59

PLB

PLB

PLBE

PLB




32

47.62

0.475

12.06

PLB

PLB

PLBE

PLB

7

7

177.8

17

25.3

0.231

5.87

PS




20

29.76

0.272

6.91

PS

PS




23

34.23

0.317

8.05

PSLB

PLB

PLB

PLBE




26

38.69

0.362

9.19

PSLB

PLB

PLB

PLBE

PLB




29

43.16

0.408

10.36

PLB

PLB

PLBE

PLB




32

47.62

0.453

11.51

PLB

PLB

PLBE

PLB




35

52.09

0.498

12.65

PLB

PLB

PLBE

PLB




38

56.55

0.54

13.72

PLB

PLB

PLBE

PLB




42.7

63.54

0.625

15.88




46.4

69.05

0.687

17.45




50.1

74.56

0.75

19.05




53.6

79.77

0.812

20.62




57.1

84.97

0.875

22.22

7 5/8

7.625

193.68

24

35.72

0.3

7.62

PS




26.4

39.29

0.328

8.33

PSLB

PLB

PLB

PLBE

PLB




29.7

44.2

0.375

9.52

PLB

PLB

PLBE

PLB




33.7

50.15

0.43

10.92

PLB

PLB

PLBE

PLB




39

58.05

0.5

12.7

PLB

PLB

PLBE

PLB




42.8

63.69

0.562

14.27

PLB

PLB

PLB

PLB




45.3

67.41

0.595

15.11

PLB

PLB

PLB

PLB




47.1

70.09

0.625

15.88

PLB

PLB

PLB

PLB




51.2

76.19

0.687

17.45




55.3

80.3

0.75

19.05

8 5/8

8.625

219.08

24

35.72

0.264

6.71

PS




28

41.62

0.304

7.72

PS




32

47.62

0.352

8.94

PS

PSLB




36

53.57

0.4

10.16

PSLB

PLB

PLB

PLBE

PLB




40

59.53

0.45

11.43

PLB

PLB

PLBE

PLB




44

65.48

0.5

12.7

PLB

PLB

PLBE

PLB




49

72.92

0.557

14.15

PLB

PLB

PLBE

PLB

9 5/8

9.625

244.48

32.3

48.07

0.312

7.92

PS




36

53.57

0.352

8.94

PS

PSLB




40

59.53

0.395

10.03

PSLB

PLB

PLB

PLBE




43.5

64.73

0.435

11.05

PLB

PLB

PLBE

PLB




47

69.94

0.472

11.99

PLB

PLB

PLBE

PLB




53.5

79.62

0.545

13.84

PLB

PLB

PLBE

PLB




58.4

86.91

0.595

15.11

PLB

PLB

PLB

PLB




59.4

88.4

0.609

15.47




64.9

96.58

0.672

17.07




70.3

104.62

0.734

18.64




75.6

112.5

0.797

20.24

10 3/4

10.75

273.05

32.75

48.74

0.279

7.09

PS




40.5

60.27

0.35

8.89

PS

PSB




45.5

67.71

0.4

10.16

PSB




51

75.9

0.45

11.43

PSB

PSB

PSB

PSBE

PSB




55.5

82.59

0.495

12.57

PSB

PSB

PSBE

PSB




60.7

90.33

0.545

13.84

PSBE

PSB




65.7

97.77

0.595

15.11

PSB

PSB




73.2

108.93

0.672

17.07




79.2

117.86

0.734

18.64




85.3

126.94

0.797

20.24

11 3/4

11.75


42

62.5

0.333

8.46

PS




47

69.94

0.375

20.24




54

80.36

0.435

8.46




60

89.29

0.489

9.53




65

96.73

0.534

11.05




71

105.66

0.582

14.42

13 3/8

13.375

339.73

48

71.43

0.33

8.38

PS




54.5

81.1

0.38

9.65

PSB




61

90.78

0.43

10.92

PSB




68

101.19

0.48

12.19

PSB

PSB

PSB

PSB

PSB




72

107.15

0.514

13.06

PSB

PSB

PSB

PSB

16

16

406.4

65

96.73

0.375

9.53

PS




75

111.61

0.438

11.13

PSB




84

125.01

0.495

12.57

PSB




109

162.21

0.656

16.66

P

P

P

P

18 5/8

18.625

473.08

87.5

130.21

0.435

11.05

PS

PSB

20

20

508

94

139.89

0.438

11.13

PSL

PSLB




106.5

158.49

0.5

12.7

PSLB




133

197.93

0.635

16.13

PSLB

P——Plain;S——Short-thread; L——Long-thread; B——Buttress thread;E——Extreme thread


Dimensions table for tubing


DN

O.D.
Inch

O.D.
mm

Weight
lb/ft

Weight
kg/m

W.T.
Inch

W.T.
mm

H40

J55 /
K55

L80

N80

C90 /
T95

P110

4 1/2

4.5

114.3

9.5

14.14

0.205

5.21

PS

PS




10.5

15.63

0.224

5.69

PSB




11.6

17.26

0.25

6.35

PSLB

PLB

PLB

PLB

PLB




13.5

20.09

0.29

7.37

PLB

PLB

PLB

PLB




15.1

22.47

0.337

9.56

PLB

5

5

127

11.5

17.11

0.22

5.59

PS




13

19.35

0.253

6.43

PSLB




15

22.32

0.296

7.52

PSLB

PLB

PLB

PLBE

PLB




18

26.79

0.362

9.19

PLB

PLB

PLBE

PLB




21.4

31.85

0.437

11.1

PLB

PLB

PLB

PLB




23.2

34.53

0.478

12.14

PLB




24.1

35.86

0.5

12.7

PLB

5 1/2

5.5

139.7

14

20.83

0.244

6.2

PS

PS




15.5

23.07

0.275

6.98

PSLB




17

25.3

0.304

7.72

PSLB

PLB

PLB

PLBE

PLB




20

29.76

0.361

9.17

PLB

PLB

PLBE

PLB




23

34.23

0.415

10.54

PLB

PLB

PLBE

PLB




26.8

39.88

0.5

12.7




29.7

44.2

0.562

14.27




32.6

48.51

0.625

15.88




35.3

52.53

0.687

17.45




38

56.55

0.75

19.05




40.5

60.27

0.812

20.62




43.1

64.14

0.875

22.22

6 5/8

6.625

168.28

20

29.76

0.288

7.32

PS

PSLB




24

35.72

0.352

8.94

PSLB

PLB

PLB

PLBE

PLB




28

41.67

0.417

10.59

PLB

PLB

PLBE

PLB




32

47.62

0.475

12.06

PLB

PLB

PLBE

PLB

7

7

177.8

17

25.3

0.231

5.87

PS




20

29.76

0.272

6.91

PS

PS




23

34.23

0.317

8.05

PSLB

PLB

PLB

PLBE




26

38.69

0.362

9.19

PSLB

PLB

PLB

PLBE

PLB




29

43.16

0.408

10.36

PLB

PLB

PLBE

PLB




32

47.62

0.453

11.51

PLB

PLB

PLBE

PLB




35

52.09

0.498

12.65

PLB

PLB

PLBE

PLB




38

56.55

0.54

13.72

PLB

PLB

PLBE

PLB




42.7

63.54

0.625

15.88




46.4

69.05

0.687

17.45




50.1

74.56

0.75

19.05




53.6

79.77

0.812

20.62




57.1

84.97

0.875

22.22

7 5/8

7.625

193.68

24

35.72

0.3

7.62

PS




26.4

39.29

0.328

8.33

PSLB

PLB

PLB

PLBE

PLB




29.7

44.2

0.375

9.52

PLB

PLB

PLBE

PLB




33.7

50.15

0.43

10.92

PLB

PLB

PLBE

PLB




39

58.05

0.5

12.7

PLB

PLB

PLBE

PLB




42.8

63.69

0.562

14.27

PLB

PLB

PLB

PLB




45.3

67.41

0.595

15.11

PLB

PLB

PLB

PLB




47.1

70.09

0.625

15.88

PLB

PLB

PLB

PLB




51.2

76.19

0.687

17.45




55.3

80.3

0.75

19.05

8 5/8

8.625

219.08

24

35.72

0.264

6.71

PS




28

41.62

0.304

7.72

PS




32

47.62

0.352

8.94

PS

PSLB




36

53.57

0.4

10.16

PSLB

PLB

PLB

PLBE

PLB




40

59.53

0.45

11.43

PLB

PLB

PLBE

PLB




44

65.48

0.5

12.7

PLB

PLB

PLBE

PLB




49

72.92

0.557

14.15

PLB

PLB

PLBE

PLB

9 5/8

9.625

244.48

32.3

48.07

0.312

7.92

PS




36

53.57

0.352

8.94

PS

PSLB




40

59.53

0.395

10.03

PSLB

PLB

PLB

PLBE




43.5

64.73

0.435

11.05

PLB

PLB

PLBE

PLB




47

69.94

0.472

11.99

PLB

PLB

PLBE

PLB




53.5

79.62

0.545

13.84

PLB

PLB

PLBE

PLB




58.4

86.91

0.595

15.11

PLB

PLB

PLB

PLB




59.4

88.4

0.609

15.47




64.9

96.58

0.672

17.07




70.3

104.62

0.734

18.64




75.6

112.5

0.797

20.24

10 3/4

10.75

273.05

32.75

48.74

0.279

7.09

PS




40.5

60.27

0.35

8.89

PS

PSB




45.5

67.71

0.4

10.16

PSB




51

75.9

0.45

11.43

PSB

PSB

PSB

PSBE

PSB




55.5

82.59

0.495

12.57

PSB

PSB

PSBE

PSB




60.7

90.33

0.545

13.84

PSBE

PSB




65.7

97.77

0.595

15.11

PSB

PSB




73.2

108.93

0.672

17.07




79.2

117.86

0.734

18.64




85.3

126.94

0.797

20.24

11 3/4

11.75


42

62.5

0.333

8.46

PS




47

69.94

0.375

20.24




54

80.36

0.435

8.46




60

89.29

0.489

9.53




65

96.73

0.534

11.05




71

105.66

0.582

14.42

13 3/8

13.375

339.73

48

71.43

0.33

8.38

PS




54.5

81.1

0.38

9.65

PSB




61

90.78

0.43

10.92

PSB




68

101.19

0.48

12.19

PSB

PSB

PSB

PSB

PSB




72

107.15

0.514

13.06

PSB

PSB

PSB

PSB

16

16

406.4

65

96.73

0.375

9.53

PS




75

111.61

0.438

11.13

PSB




84

125.01

0.495

12.57

PSB




109

162.21

0.656

16.66

P

P

P

P

18 5/8

18.625

473.08

87.5

130.21

0.435

11.05

PS

PSB

20

20

508

94

139.89

0.438

11.13

PSL

PSLB




106.5

158.49

0.5

12.7

PSLB




133

197.93

0.635

16.13

PSLB

Material Properties

Manufactured in full compliance with API 5CT, our oil casing and tubing feature precisely controlled carbon and alloy chemical compositions. Every steel grade has unified standardized mechanical metrics covering yield strength, tensile strength, elongation and collapse resistance applicable to both casing and tubing. Corrosion-resistant L80-9Cr and L80-13Cr grades are formulated with chromium alloy to resist CO₂ and hydrogen sulfide erosion; high-strength grades offer outstanding load-bearing performance for deep and high-pressure well conditions. Both casing and tubing undergo full mandatory chemical analysis and physical performance testing before delivery.


Tensile Properties and Hardness

Category

Grade

Yield Strength Min. (psi)

Yield Strength Max. (psi)

Tensile Strength Min. (psi)

Elongation (%)

Hardness (HRC)

API 5CT

H-40

40,000

80,000

60,000

API formula





J-55

55,000

80,000

75,000





K-55

55,000

80,000

95,000



Deep Well Service DE

NT-80DE

80,000

110,000

100,000



High Collapse-General HE

NT-55HE

55,000

95,000

95,000



≤22



NT-80HE

80,000

110,000

100,000



≤22



NT-95HE

95,000

125,000

110,000



≤31



NT-110HE

110,000

140,000

125,000



High Collapse-High Toughness LHE

NT-80LHE

80,000

95,000

95,000



≤22


Chemical Composition of casing pipe

Standard

Grade

Chemical compositions ( %)

API SPEC 5CT

 5CT

J55

C

Si

Mn

P

S

Cr

Ni

Cu

Mo

V



K55

0.34 ~ 0.39

0.20 ~ 0.35

1.25 ~ 1.50

≤0.020

≤0.015

≤0.15

≤0.20

≤0.20

/

/



N80

0.34 ~ 0.38

0.20 ~ 0.35

1.45 ~ 1.70

≤0.020

≤0.015

≤0.15

/

/

/

0.11 ~ 0.16



L80

0.15 ~ 0.22

≤1.00

0.25 ~ 1.00

≤0.020

≤0.010

12.0 ~ 14.0

≤0.20

≤0.20

/

/



P110

0.26 ~ 0.395

0.17 ~ 0.37

0.40 ~ 0.70

≤0.020

≤0.010

0.80 ~ 1.10

≤0.20

≤0.20

0.15 ~ 0.25

≤0.08


Mechanical properties of casing pipe


Grade

Type

Total elongation under load (%)

Yield strength (min)

Yield strength (max)

Tensile strength min Mpa

Hardness Max (HRC)

Hardness Max (HBW)

J55

-

0.5

379

552

517

-

-

K55

-

0.5

379

552

655

-

-

N80

1

0.5

552

758

689

-

-

N80

Q

0.5

552

758

689

-

-

L80

1

0.5

552

655

655

23

241

L80

9Cr

0.5

552

655

655

23

241

L80

13Cr

0.5

552

655

655

23

241

C90

-

0.5

621

724

689

25.4

255

C95

-

0.5

655

758

724

-

-

T95

-

0.5

655

758

724

25.4

255

P110

-

0.6

758

965

862

-

-

Q125

All

0.65

862

1034

931

-

-


Process & Finishing

Our API 5CT casing and tubing are fully manufactured in strict compliance with global API standards. Beyond standard specifications, we independently develop proprietary steel grades tailored for extreme downhole environments, including sour service, high-collapse resistance, chrome alloy, and CRA working conditions. This customized grade system enables us to deliver targeted, optimal solutions for customers’ unique well designs and complex reservoir requirements.

All casing and tubing products are produced under ultra-stringent industrial quality standards. Our factory holds ISO 9001 global quality certification, executing unified quality policies and a full-cycle rigorous quality management system to ensure consistent, reliable pipe performance for oilfield applications.

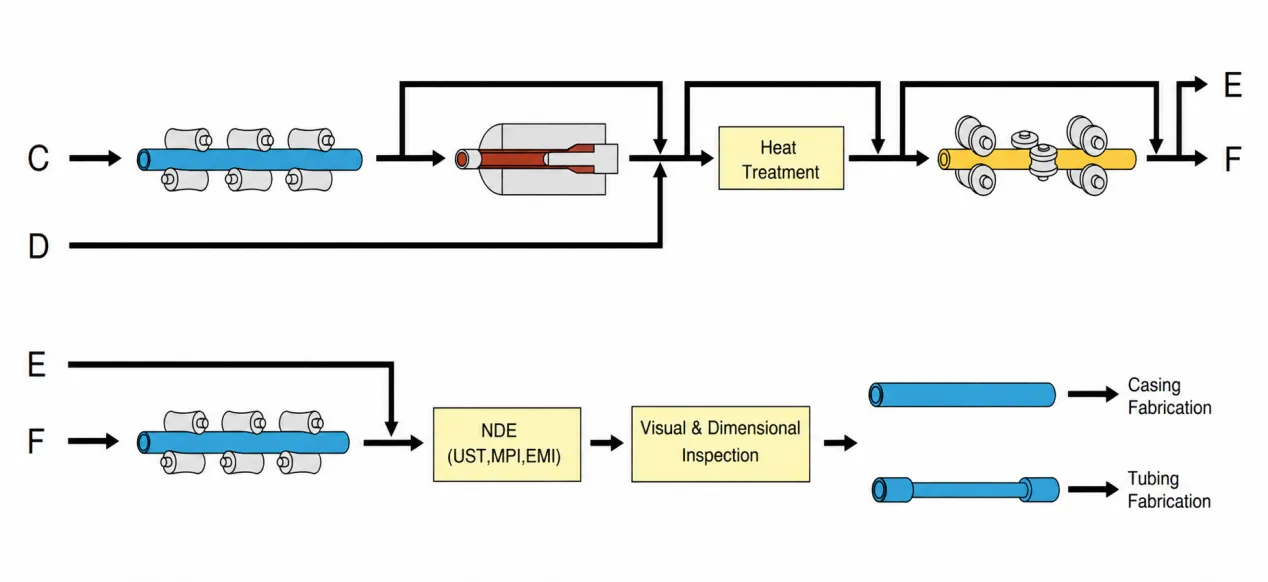

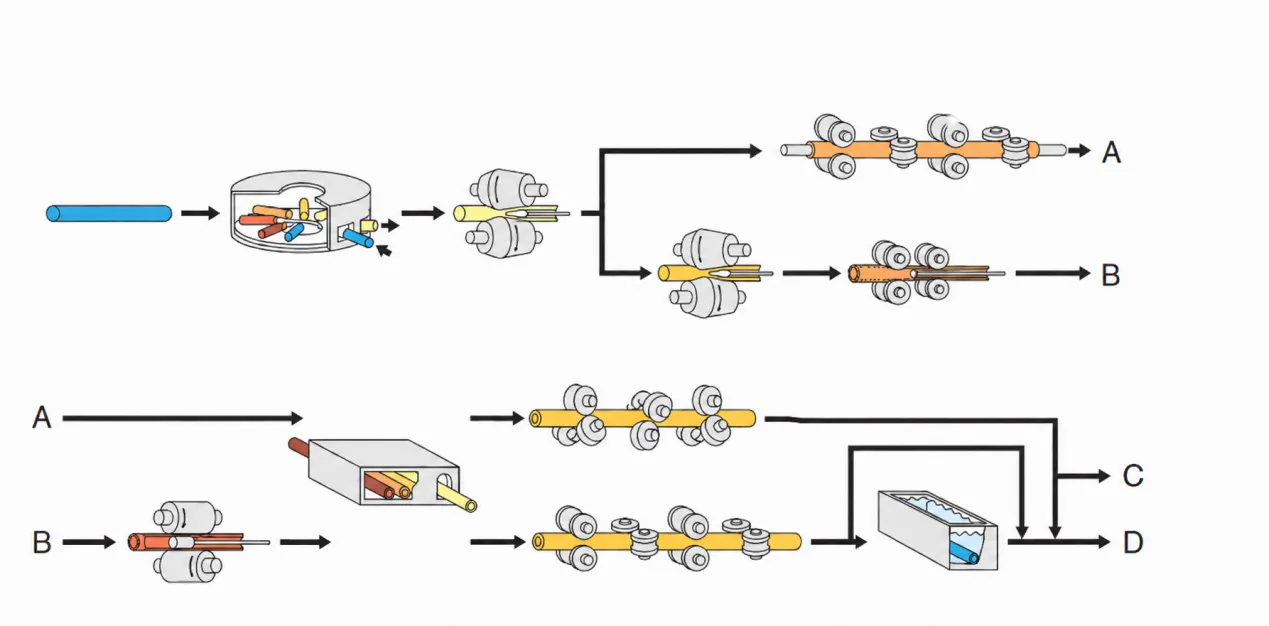

Process-of-casing-and-tubing-1Process-of-casing-and-tubing-2

1. Precision Steelmaking We implement professional degassing and desulfurization treatment during steelmaking, effectively reducing non-metallic inclusions and purifying steel microstructure. The process produces ultra-clean steel with excellent surface finish and stable mechanical foundation for subsequent pipe forming.

2. Fine-Grain Hot Rolling Adopting advanced hot rolling technology, we produce hot-rolled coils with uniform fine grain structure and ultra-high dimensional accuracy. This procedure guarantees consistent wall thickness, roundness and overall structural stability of finished casing and tubing.

3. Stable Spiral Looper Feeding Equipped with precision spiral looper equipment, the production line provides continuous, steady coil feeding for downstream edge milling, pipe forming and welding procedures, avoiding tension deviation and ensuring unified pipe forming quality.

4. Heavy-Duty Forming Stands High-rigidity forming stands accurately shape steel coils into standard pipes, covering a complete range of outer diameters and wall thickness specifications. The molding process ensures uniform stress distribution and qualified roundness for all casing and tubing products.

5. Intelligent HF Welding & Real-Time Monitoring We adopt NSSMC independently developed welding condition monitoring and control system for high-frequency welding. The intelligent system stabilizes welding parameters and generates high-quality, defect-free weld seams. All welds undergo 100% ultrasonic real-time inspection to eliminate hidden welding flaws.

6. Weld Seam Precision Heat Treatment Targeted heat treatment is performed exclusively on welding zones. Optical sensors accurately locate weld positions for precise thermal processing, stabilizing weld microstructure and unifying the mechanical properties of weld seams and base metal. Combined with ultrasonic and hydrostatic testing, this process ensures integral pipe body consistency.

7. Full-Coverage Non-Destructive Testing (NDT) Every single casing and tubing pipe undergoes comprehensive full-length, full-surface non-destructive testing. Systematic NDT inspection completely detects internal and surface defects, ensuring 100% structural integrity of finished pipes.

8. Automatic Comprehensive Dimension Inspection High-precision automatic inspection equipment performs full-range dimensional and appearance checks on each pipe, verifying outer diameter, wall thickness, length, straightness and surface quality to meet API 5CT tolerance standards.

9. Whole-Process Monitoring & Traceability System Online computer systems monitor and record every production procedure in real time. All manufacturing parameters, test data and processing records are permanently stored, supporting full quality traceability and customizable data reporting for global oilfield procurement and third-party audits.

10. Standardized Automatic Marking Automatic stencilling and die-stamping equipment complete standardized permanent marking for each pipe, including steel grade, size, standard, batch number and certification information, ensuring clear identification and global project adaptability.

Test & QC

All casing and tubing undergoes strict full inspection in accordance with API 5CT standard before delivery, covering raw material, semi-finished and finished pipe tests:
1)Raw material inspection: Chemical composition analysis of steel billets, surface & internal defect check
2)Dimensional inspection: OD, wall thickness, length, weight tolerance, thread dimension & thread profile detection
3)Mechanical performance test: Tensile test, yield strength, hardness, impact test, flattening test
Pressure test: Full-length hydrostatic pressure test to verify burst resistance
4)Non-destructive testing (NDT): Whole-body ultrasonic flaw detection for internal cracks, laminations and inclusions; magnetic particle inspection for surface defects
Thread inspection: Torque test, sealing performance inspection for couplings

We provide complete official certification documents for customs clearance, oilfield acceptance and project tender:
1)Mill Test Certificate (MTC / Material Test Certificate) Includes full heat number, steel grade, chemical composition, mechanical test data, hydrostatic test results and NDT records, fully traceable to raw steel billets.
2)API Monogram Certificate Our factory holds official API monogram license; all pipes are printed with API monogram marking as required by API 5CT.
3)Third-party inspection certificate (optional) Accept authorized third-party inspection such as SGS, BV, TÜV upon customer request, with independent test reports issued.
4)Standard shipping documents Commercial invoice, packing list, bill of lading, quality certificate for export clearance.

FAQ

Q1: What are oil casing and tubing pipes?

A1: Casing and tubing are API 5CT standard OCTG seamless steel pipes, serving as indispensable core components for oil and gas well drilling and completion.Large-diameter cemented pipes fixed in boreholes, used to stabilize wellbores, prevent formation collapse and isolate underground water and impurities.Precision inner pipeline installed inside casing strings, acting as a dedicated channel for transporting subsurface oil and gas to the surface.Both products adopt high-strength steel with a minimum yield strength of 35,000 psi to resist complex downhole loads, covering standard outer diameters from 4.5″ to 36″ for all well construction scenarios.

Q2: What is API 5CT standard and core specifications?

A2: API 5CT (ISO 13680) is the global unified technical standard for oilfield casing and tubing, covering material, mechanical, dimensional, thread and full inspection specifications.Available steel grades: J55, K55, N80-1, N80-Q, L80-1, L80-9Cr, L80-13Cr, C95, P110.Thread types: Standard API threads include STC, LTC, BTC, NUE, EUE; premium threads include VAM, VAM TOP, NEW VAM.Dimensional range: Outer diameter 114.3–508 mm, wall thickness 5.21–16.13 mm.

Q3: What are the classifications and functions of casing & tubing strings?

  1. Conductor casing: 18″–36″ OD, the outermost barrier for structural support and groundwater pollution prevention.
  2. Surface casing: Mainstream size 13 3/8″, protects freshwater formations, prevents blowouts and supports wellhead & BOP equipment.
  3. Intermediate casing: Optional transitional casing for complex geological conditions and deep well projects.
  4. Production casing & liner: Production casing stabilizes reservoirs and controls downhole pressure; production liner reduces costs via partial-depth installation.
  5. Tubing function: Installed inside finished casing to form an independent sealed flow channel for long-term oil and gas production.

Q4: What steel grades are available and their applicable well conditions?

  1. Shallow well grades (H40, J55, K55): Cost-effective for shallow, low-pressure and mild-corrosion conventional wells.
  2. Medium-depth well grades (M65, N80-1, N80-Q): Balanced strength and stability for medium-pressure regular oil and gas wells.
  3. Sour service grades (L80, L80-9Cr, L80-13Cr): Chromium-alloyed anti-corrosion pipes for CO₂ and H₂S acidic downhole environments.
  4. Deep HPHT well grades (C90, T95, P110, Q125): Ultra-high-strength grades for ultra-deep, high-pressure and harsh corrosive oilfield conditions.

Q5: What thread connection types are supplied for casing and tubing?

A5: Standard API threads: Including STC, LTC, BTC, NUE, EUE, featuring stable sealing and cost efficiency for shallow and medium-depth conventional wells.Premium connection threads: Including VAM, VAM TOP, NEW VAM, with excellent gas tightness and tensile resistance for HPHT wells and deepwater complex projects.

Q6: How are casing and tubing installed in oil and gas wells?

  1. Casing assembly: Assemble individual pipes into tapered strings with decreasing diameters through threaded couplings.
  2. Casing running: Complete single-section drilling, withdraw drill string and lower casing into the borehole.
  3. Casing cementing: Pump cement slurry to fill the annular space for permanent fixation, and continue drilling after cement solidification.
  4. Tubing installation: Run production tubing inside cemented casing after well completion to form a fully enclosed and safe production system.

Q7: What quality inspection standards apply to your casing and tubing?

  1. Material & mechanical testing: Conduct chemical composition analysis and tests for tensile strength, yield strength, hardness and impact resistance.
  2. Pressure & NDT inspection: Perform full-length hydrostatic pressure testing and ultrasonic & electromagnetic non-destructive flaw detection.
  3. Dimensional calibration: Precisely inspect outer diameter, wall thickness, weight and thread tolerance to meet API 5CT tolerance standards.
  4. Certification support: Provide traceable MTC certificates, official API monogram, and optional SGS, BV, TÜV third-party inspection reports.

Q8: What are the core functions of casing and tubing in well operation?

  1. Wellbore protection: Casing bears complex downhole pressure and tension, stabilizes boreholes and prevents formation collapse.
  2. Formation isolation: Casing isolates high-pressure formations and avoids cross-contamination between groundwater and crude oil.
  3. Leakage prevention: Casing eliminates underground fluid leakage and reserves stable space for downhole equipment installation.
  4. Production transmission: Tubing acts as an independent transmission pipeline to deliver oil and gas to the surface, and protects casing from fluid erosion to extend well service life.
The Casing and Tubing dimension table covers all standard OD sizes from 4 1/2" to 20" with matched nominal weights and standard R1/R2/R3 lengths. All data complies with API 5CT, providing intuitive size reference for oil well design and procurement. The Casing and Tubing dimension tolerance table is attached to specify permissible deviations of outer diameter, wall thickness, length and weight. All data complies with API 5CT, providing intuitive size and tolerance reference for oil well design and procurement.

Dimension Tolerances:

Casing Pipe

Item / Part

Tolerance

Outside Diameter

Pipe Body

D≤101.60mm, ±0.79mm

D≥114.30mm, +1.0%, -0.5%D

Coupling

±1%D

Wall Thickness

0, -12.5%t

Weight

Single Lengths

+6.5%, -3.5%

Carload Lots or Order Quantity

≥18144 kg (40000lb), 0, -1.75%

< 18144 kg (40000lb), 0, -3.5%


Dimensions table for casing

DN

O.D.
Inch

O.D.
mm

Weight
lb/ft

Weight
kg/m

W.T.
Inch

W.T.
mm

H40

J55 /
K55

L80

N80

C90 /
T95

P110

4 1/2

4.5

114.3

9.5

14.14

0.205

5.21

PS

PS




10.5

15.63

0.224

5.69

PSB




11.6

17.26

0.25

6.35

PSLB

PLB

PLB

PLB

PLB




13.5

20.09

0.29

7.37

PLB

PLB

PLB

PLB




15.1

22.47

0.337

9.56

PLB

5

5

127

11.5

17.11

0.22

5.59

PS




13

19.35

0.253

6.43

PSLB




15

22.32

0.296

7.52

PSLB

PLB

PLB

PLBE

PLB




18

26.79

0.362

9.19

PLB

PLB

PLBE

PLB




21.4

31.85

0.437

11.1

PLB

PLB

PLB

PLB




23.2

34.53

0.478

12.14

PLB




24.1

35.86

0.5

12.7

PLB

5 1/2

5.5

139.7

14

20.83

0.244

6.2

PS

PS




15.5

23.07

0.275

6.98

PSLB




17

25.3

0.304

7.72

PSLB

PLB

PLB

PLBE

PLB




20

29.76

0.361

9.17

PLB

PLB

PLBE

PLB




23

34.23

0.415

10.54

PLB

PLB

PLBE

PLB




26.8

39.88

0.5

12.7




29.7

44.2

0.562

14.27




32.6

48.51

0.625

15.88




35.3

52.53

0.687

17.45




38

56.55

0.75

19.05




40.5

60.27

0.812

20.62




43.1

64.14

0.875

22.22

6 5/8

6.625

168.28

20

29.76

0.288

7.32

PS

PSLB




24

35.72

0.352

8.94

PSLB

PLB

PLB

PLBE

PLB




28

41.67

0.417

10.59

PLB

PLB

PLBE

PLB




32

47.62

0.475

12.06

PLB

PLB

PLBE

PLB

7

7

177.8

17

25.3

0.231

5.87

PS




20

29.76

0.272

6.91

PS

PS




23

34.23

0.317

8.05

PSLB

PLB

PLB

PLBE




26

38.69

0.362

9.19

PSLB

PLB

PLB

PLBE

PLB




29

43.16

0.408

10.36

PLB

PLB

PLBE

PLB




32

47.62

0.453

11.51

PLB

PLB

PLBE

PLB




35

52.09

0.498

12.65

PLB

PLB

PLBE

PLB




38

56.55

0.54

13.72

PLB

PLB

PLBE

PLB




42.7

63.54

0.625

15.88




46.4

69.05

0.687

17.45




50.1

74.56

0.75

19.05




53.6

79.77

0.812

20.62




57.1

84.97

0.875

22.22

7 5/8

7.625

193.68

24

35.72

0.3

7.62

PS




26.4

39.29

0.328

8.33

PSLB

PLB

PLB

PLBE

PLB




29.7

44.2

0.375

9.52

PLB

PLB

PLBE

PLB




33.7

50.15

0.43

10.92

PLB

PLB

PLBE

PLB




39

58.05

0.5

12.7

PLB

PLB

PLBE

PLB




42.8

63.69

0.562

14.27

PLB

PLB

PLB

PLB




45.3

67.41

0.595

15.11

PLB

PLB

PLB

PLB




47.1

70.09

0.625

15.88

PLB

PLB

PLB

PLB




51.2

76.19

0.687

17.45




55.3

80.3

0.75

19.05

8 5/8

8.625

219.08

24

35.72

0.264

6.71

PS




28

41.62

0.304

7.72

PS




32

47.62

0.352

8.94

PS

PSLB




36

53.57

0.4

10.16

PSLB

PLB

PLB

PLBE

PLB




40

59.53

0.45

11.43

PLB

PLB

PLBE

PLB




44

65.48

0.5

12.7

PLB

PLB

PLBE

PLB




49

72.92

0.557

14.15

PLB

PLB

PLBE

PLB

9 5/8

9.625

244.48

32.3

48.07

0.312

7.92

PS




36

53.57

0.352

8.94

PS

PSLB




40

59.53

0.395

10.03

PSLB

PLB

PLB

PLBE




43.5

64.73

0.435

11.05

PLB

PLB

PLBE

PLB




47

69.94

0.472

11.99

PLB

PLB

PLBE

PLB




53.5

79.62

0.545

13.84

PLB

PLB

PLBE

PLB




58.4

86.91

0.595

15.11

PLB

PLB

PLB

PLB




59.4

88.4

0.609

15.47




64.9

96.58

0.672

17.07




70.3

104.62

0.734

18.64




75.6

112.5

0.797

20.24

10 3/4

10.75

273.05

32.75

48.74

0.279

7.09

PS




40.5

60.27

0.35

8.89

PS

PSB




45.5

67.71

0.4

10.16

PSB




51

75.9

0.45

11.43

PSB

PSB

PSB

PSBE

PSB




55.5

82.59

0.495

12.57

PSB

PSB

PSBE

PSB




60.7

90.33

0.545

13.84

PSBE

PSB




65.7

97.77

0.595

15.11

PSB

PSB




73.2

108.93

0.672

17.07




79.2

117.86

0.734

18.64




85.3

126.94

0.797

20.24

11 3/4

11.75


42

62.5

0.333

8.46

PS




47

69.94

0.375

20.24




54

80.36

0.435

8.46




60

89.29

0.489

9.53




65

96.73

0.534

11.05




71

105.66

0.582

14.42

13 3/8

13.375

339.73

48

71.43

0.33

8.38

PS




54.5

81.1

0.38

9.65

PSB




61

90.78

0.43

10.92

PSB




68

101.19

0.48

12.19

PSB

PSB

PSB

PSB

PSB




72

107.15

0.514

13.06

PSB

PSB

PSB

PSB

16

16

406.4

65

96.73

0.375

9.53

PS




75

111.61

0.438

11.13

PSB




84

125.01

0.495

12.57

PSB




109

162.21

0.656

16.66

P

P

P

P

18 5/8

18.625

473.08

87.5

130.21

0.435

11.05

PS

PSB

20

20

508

94

139.89

0.438

11.13

PSL

PSLB




106.5

158.49

0.5

12.7

PSLB




133

197.93

0.635

16.13

PSLB

P——Plain;S——Short-thread; L——Long-thread; B——Buttress thread;E——Extreme thread


Dimensions table for tubing


DN

O.D.
Inch

O.D.
mm

Weight
lb/ft

Weight
kg/m

W.T.
Inch

W.T.
mm

H40

J55 /
K55

L80

N80

C90 /
T95

P110

4 1/2

4.5

114.3

9.5

14.14

0.205

5.21

PS

PS




10.5

15.63

0.224

5.69

PSB




11.6

17.26

0.25

6.35

PSLB

PLB

PLB

PLB

PLB




13.5

20.09

0.29

7.37

PLB

PLB

PLB

PLB




15.1

22.47

0.337

9.56

PLB

5

5

127

11.5

17.11

0.22

5.59

PS




13

19.35

0.253

6.43

PSLB




15

22.32

0.296

7.52

PSLB

PLB

PLB

PLBE

PLB




18

26.79

0.362

9.19

PLB

PLB

PLBE

PLB




21.4

31.85

0.437

11.1

PLB

PLB

PLB

PLB




23.2

34.53

0.478

12.14

PLB




24.1

35.86

0.5

12.7

PLB

5 1/2

5.5

139.7

14

20.83

0.244

6.2

PS

PS




15.5

23.07

0.275

6.98

PSLB




17

25.3

0.304

7.72

PSLB

PLB

PLB

PLBE

PLB




20

29.76

0.361

9.17

PLB

PLB

PLBE

PLB




23

34.23

0.415

10.54

PLB

PLB

PLBE

PLB




26.8

39.88

0.5

12.7




29.7

44.2

0.562

14.27




32.6

48.51

0.625

15.88




35.3

52.53

0.687

17.45




38

56.55

0.75

19.05




40.5

60.27

0.812

20.62




43.1

64.14

0.875

22.22

6 5/8

6.625

168.28

20

29.76

0.288

7.32

PS

PSLB




24

35.72

0.352

8.94

PSLB

PLB

PLB

PLBE

PLB




28

41.67

0.417

10.59

PLB

PLB

PLBE

PLB




32

47.62

0.475

12.06

PLB

PLB

PLBE

PLB

7

7

177.8

17

25.3

0.231

5.87

PS




20

29.76

0.272

6.91

PS

PS




23

34.23

0.317

8.05

PSLB

PLB

PLB

PLBE




26

38.69

0.362

9.19

PSLB

PLB

PLB

PLBE

PLB




29

43.16

0.408

10.36

PLB

PLB

PLBE

PLB




32

47.62

0.453

11.51

PLB

PLB

PLBE

PLB




35

52.09

0.498

12.65

PLB

PLB

PLBE

PLB




38

56.55

0.54

13.72

PLB

PLB

PLBE

PLB




42.7

63.54

0.625

15.88




46.4

69.05

0.687

17.45




50.1

74.56

0.75

19.05




53.6

79.77

0.812

20.62




57.1

84.97

0.875

22.22

7 5/8

7.625

193.68

24

35.72

0.3

7.62

PS




26.4

39.29

0.328

8.33

PSLB

PLB

PLB

PLBE

PLB




29.7

44.2

0.375

9.52

PLB

PLB

PLBE

PLB




33.7

50.15

0.43

10.92

PLB

PLB

PLBE

PLB




39

58.05

0.5

12.7

PLB

PLB

PLBE

PLB




42.8

63.69

0.562

14.27

PLB

PLB

PLB

PLB




45.3

67.41

0.595

15.11

PLB

PLB

PLB

PLB




47.1

70.09

0.625

15.88

PLB

PLB

PLB

PLB




51.2

76.19

0.687

17.45




55.3

80.3

0.75

19.05

8 5/8

8.625

219.08

24

35.72

0.264

6.71

PS




28

41.62

0.304

7.72

PS




32

47.62

0.352

8.94

PS

PSLB




36

53.57

0.4

10.16

PSLB

PLB

PLB

PLBE

PLB




40

59.53

0.45

11.43

PLB

PLB

PLBE

PLB




44

65.48

0.5

12.7

PLB

PLB

PLBE

PLB




49

72.92

0.557

14.15

PLB

PLB

PLBE

PLB

9 5/8

9.625

244.48

32.3

48.07

0.312

7.92

PS




36

53.57

0.352

8.94

PS

PSLB




40

59.53

0.395

10.03

PSLB

PLB

PLB

PLBE




43.5

64.73

0.435

11.05

PLB

PLB

PLBE

PLB




47

69.94

0.472

11.99

PLB

PLB

PLBE

PLB




53.5

79.62

0.545

13.84

PLB

PLB

PLBE

PLB




58.4

86.91

0.595

15.11

PLB

PLB

PLB

PLB




59.4

88.4

0.609

15.47




64.9

96.58

0.672

17.07




70.3

104.62

0.734

18.64




75.6

112.5

0.797

20.24

10 3/4

10.75

273.05

32.75

48.74

0.279

7.09

PS




40.5

60.27

0.35

8.89

PS

PSB




45.5

67.71

0.4

10.16

PSB




51

75.9

0.45

11.43

PSB

PSB

PSB

PSBE

PSB




55.5

82.59

0.495

12.57

PSB

PSB

PSBE

PSB




60.7

90.33

0.545

13.84

PSBE

PSB




65.7

97.77

0.595

15.11

PSB

PSB




73.2

108.93

0.672

17.07




79.2

117.86

0.734

18.64




85.3

126.94

0.797

20.24

11 3/4

11.75


42

62.5

0.333

8.46

PS




47

69.94

0.375

20.24




54

80.36

0.435

8.46




60

89.29

0.489

9.53




65

96.73

0.534

11.05




71

105.66

0.582

14.42

13 3/8

13.375

339.73

48

71.43

0.33

8.38

PS




54.5

81.1

0.38

9.65

PSB




61

90.78

0.43

10.92

PSB




68

101.19

0.48

12.19

PSB

PSB

PSB

PSB

PSB




72

107.15

0.514

13.06

PSB

PSB

PSB

PSB

16

16

406.4

65

96.73

0.375

9.53

PS




75

111.61

0.438

11.13

PSB




84

125.01

0.495

12.57

PSB




109

162.21

0.656

16.66

P

P

P

P

18 5/8

18.625

473.08

87.5

130.21

0.435

11.05

PS

PSB

20

20

508

94

139.89

0.438

11.13

PSL

PSLB




106.5

158.49

0.5

12.7

PSLB




133

197.93

0.635

16.13

PSLB

Manufactured in full compliance with API 5CT, our oil casing and tubing feature precisely controlled carbon and alloy chemical compositions. Every steel grade has unified standardized mechanical metrics covering yield strength, tensile strength, elongation and collapse resistance applicable to both casing and tubing. Corrosion-resistant L80-9Cr and L80-13Cr grades are formulated with chromium alloy to resist CO₂ and hydrogen sulfide erosion; high-strength grades offer outstanding load-bearing performance for deep and high-pressure well conditions. Both casing and tubing undergo full mandatory chemical analysis and physical performance testing before delivery.


Tensile Properties and Hardness

Category

Grade

Yield Strength Min. (psi)

Yield Strength Max. (psi)

Tensile Strength Min. (psi)

Elongation (%)

Hardness (HRC)

API 5CT

H-40

40,000

80,000

60,000

API formula





J-55

55,000

80,000

75,000





K-55

55,000

80,000

95,000



Deep Well Service DE

NT-80DE

80,000

110,000

100,000



High Collapse-General HE

NT-55HE

55,000

95,000

95,000



≤22



NT-80HE

80,000

110,000

100,000



≤22



NT-95HE

95,000

125,000

110,000



≤31



NT-110HE

110,000

140,000

125,000



High Collapse-High Toughness LHE

NT-80LHE

80,000

95,000

95,000



≤22


Chemical Composition of casing pipe

Standard

Grade

Chemical compositions ( %)

API SPEC 5CT

 5CT

J55

C

Si

Mn

P

S

Cr

Ni

Cu

Mo

V



K55

0.34 ~ 0.39

0.20 ~ 0.35

1.25 ~ 1.50

≤0.020

≤0.015

≤0.15

≤0.20

≤0.20

/

/



N80

0.34 ~ 0.38

0.20 ~ 0.35

1.45 ~ 1.70

≤0.020

≤0.015

≤0.15

/

/

/

0.11 ~ 0.16



L80

0.15 ~ 0.22

≤1.00

0.25 ~ 1.00

≤0.020

≤0.010

12.0 ~ 14.0

≤0.20

≤0.20

/

/



P110

0.26 ~ 0.395

0.17 ~ 0.37

0.40 ~ 0.70

≤0.020

≤0.010

0.80 ~ 1.10

≤0.20

≤0.20

0.15 ~ 0.25

≤0.08


Mechanical properties of casing pipe


Grade

Type

Total elongation under load (%)

Yield strength (min)

Yield strength (max)

Tensile strength min Mpa

Hardness Max (HRC)

Hardness Max (HBW)

J55

-

0.5

379

552

517

-

-

K55

-

0.5

379

552

655

-

-

N80

1

0.5

552

758

689

-

-

N80

Q

0.5

552

758

689

-

-

L80

1

0.5

552

655

655

23

241

L80

9Cr

0.5

552

655

655

23

241

L80

13Cr

0.5

552

655

655

23

241

C90

-

0.5

621

724

689

25.4

255

C95

-

0.5

655

758

724

-

-

T95

-

0.5

655

758

724

25.4

255

P110

-

0.6

758

965

862

-

-

Q125

All

0.65

862

1034

931

-

-


Our API 5CT casing and tubing are fully manufactured in strict compliance with global API standards. Beyond standard specifications, we independently develop proprietary steel grades tailored for extreme downhole environments, including sour service, high-collapse resistance, chrome alloy, and CRA working conditions. This customized grade system enables us to deliver targeted, optimal solutions for customers’ unique well designs and complex reservoir requirements.

All casing and tubing products are produced under ultra-stringent industrial quality standards. Our factory holds ISO 9001 global quality certification, executing unified quality policies and a full-cycle rigorous quality management system to ensure consistent, reliable pipe performance for oilfield applications.
Process-of-casing-and-tubing-1Process-of-casing-and-tubing-2

1. Precision Steelmaking We implement professional degassing and desulfurization treatment during steelmaking, effectively reducing non-metallic inclusions and purifying steel microstructure. The process produces ultra-clean steel with excellent surface finish and stable mechanical foundation for subsequent pipe forming.

2. Fine-Grain Hot Rolling Adopting advanced hot rolling technology, we produce hot-rolled coils with uniform fine grain structure and ultra-high dimensional accuracy. This procedure guarantees consistent wall thickness, roundness and overall structural stability of finished casing and tubing.

3. Stable Spiral Looper Feeding Equipped with precision spiral looper equipment, the production line provides continuous, steady coil feeding for downstream edge milling, pipe forming and welding procedures, avoiding tension deviation and ensuring unified pipe forming quality.

4. Heavy-Duty Forming Stands High-rigidity forming stands accurately shape steel coils into standard pipes, covering a complete range of outer diameters and wall thickness specifications. The molding process ensures uniform stress distribution and qualified roundness for all casing and tubing products.

5. Intelligent HF Welding & Real-Time Monitoring We adopt NSSMC independently developed welding condition monitoring and control system for high-frequency welding. The intelligent system stabilizes welding parameters and generates high-quality, defect-free weld seams. All welds undergo 100% ultrasonic real-time inspection to eliminate hidden welding flaws.

6. Weld Seam Precision Heat Treatment Targeted heat treatment is performed exclusively on welding zones. Optical sensors accurately locate weld positions for precise thermal processing, stabilizing weld microstructure and unifying the mechanical properties of weld seams and base metal. Combined with ultrasonic and hydrostatic testing, this process ensures integral pipe body consistency.

7. Full-Coverage Non-Destructive Testing (NDT) Every single casing and tubing pipe undergoes comprehensive full-length, full-surface non-destructive testing. Systematic NDT inspection completely detects internal and surface defects, ensuring 100% structural integrity of finished pipes.

8. Automatic Comprehensive Dimension Inspection High-precision automatic inspection equipment performs full-range dimensional and appearance checks on each pipe, verifying outer diameter, wall thickness, length, straightness and surface quality to meet API 5CT tolerance standards.

9. Whole-Process Monitoring & Traceability System Online computer systems monitor and record every production procedure in real time. All manufacturing parameters, test data and processing records are permanently stored, supporting full quality traceability and customizable data reporting for global oilfield procurement and third-party audits.

10. Standardized Automatic Marking Automatic stencilling and die-stamping equipment complete standardized permanent marking for each pipe, including steel grade, size, standard, batch number and certification information, ensuring clear identification and global project adaptability.

All casing and tubing undergoes strict full inspection in accordance with API 5CT standard before delivery, covering raw material, semi-finished and finished pipe tests:
1)Raw material inspection: Chemical composition analysis of steel billets, surface & internal defect check
2)Dimensional inspection: OD, wall thickness, length, weight tolerance, thread dimension & thread profile detection
3)Mechanical performance test: Tensile test, yield strength, hardness, impact test, flattening test
Pressure test: Full-length hydrostatic pressure test to verify burst resistance
4)Non-destructive testing (NDT): Whole-body ultrasonic flaw detection for internal cracks, laminations and inclusions; magnetic particle inspection for surface defects
Thread inspection: Torque test, sealing performance inspection for couplings

We provide complete official certification documents for customs clearance, oilfield acceptance and project tender:
1)Mill Test Certificate (MTC / Material Test Certificate) Includes full heat number, steel grade, chemical composition, mechanical test data, hydrostatic test results and NDT records, fully traceable to raw steel billets.
2)API Monogram Certificate Our factory holds official API monogram license; all pipes are printed with API monogram marking as required by API 5CT.
3)Third-party inspection certificate (optional) Accept authorized third-party inspection such as SGS, BV, TÜV upon customer request, with independent test reports issued.
4)Standard shipping documents Commercial invoice, packing list, bill of lading, quality certificate for export clearance.

Q1: What are oil casing and tubing pipes?

A1: Casing and tubing are API 5CT standard OCTG seamless steel pipes, serving as indispensable core components for oil and gas well drilling and completion.Large-diameter cemented pipes fixed in boreholes, used to stabilize wellbores, prevent formation collapse and isolate underground water and impurities.Precision inner pipeline installed inside casing strings, acting as a dedicated channel for transporting subsurface oil and gas to the surface.Both products adopt high-strength steel with a minimum yield strength of 35,000 psi to resist complex downhole loads, covering standard outer diameters from 4.5″ to 36″ for all well construction scenarios.

Q2: What is API 5CT standard and core specifications?

A2: API 5CT (ISO 13680) is the global unified technical standard for oilfield casing and tubing, covering material, mechanical, dimensional, thread and full inspection specifications.Available steel grades: J55, K55, N80-1, N80-Q, L80-1, L80-9Cr, L80-13Cr, C95, P110.Thread types: Standard API threads include STC, LTC, BTC, NUE, EUE; premium threads include VAM, VAM TOP, NEW VAM.Dimensional range: Outer diameter 114.3–508 mm, wall thickness 5.21–16.13 mm.

Q3: What are the classifications and functions of casing & tubing strings?

  1. Conductor casing: 18″–36″ OD, the outermost barrier for structural support and groundwater pollution prevention.
  2. Surface casing: Mainstream size 13 3/8″, protects freshwater formations, prevents blowouts and supports wellhead & BOP equipment.
  3. Intermediate casing: Optional transitional casing for complex geological conditions and deep well projects.
  4. Production casing & liner: Production casing stabilizes reservoirs and controls downhole pressure; production liner reduces costs via partial-depth installation.
  5. Tubing function: Installed inside finished casing to form an independent sealed flow channel for long-term oil and gas production.

Q4: What steel grades are available and their applicable well conditions?

  1. Shallow well grades (H40, J55, K55): Cost-effective for shallow, low-pressure and mild-corrosion conventional wells.
  2. Medium-depth well grades (M65, N80-1, N80-Q): Balanced strength and stability for medium-pressure regular oil and gas wells.
  3. Sour service grades (L80, L80-9Cr, L80-13Cr): Chromium-alloyed anti-corrosion pipes for CO₂ and H₂S acidic downhole environments.
  4. Deep HPHT well grades (C90, T95, P110, Q125): Ultra-high-strength grades for ultra-deep, high-pressure and harsh corrosive oilfield conditions.

Q5: What thread connection types are supplied for casing and tubing?

A5: Standard API threads: Including STC, LTC, BTC, NUE, EUE, featuring stable sealing and cost efficiency for shallow and medium-depth conventional wells.Premium connection threads: Including VAM, VAM TOP, NEW VAM, with excellent gas tightness and tensile resistance for HPHT wells and deepwater complex projects.

Q6: How are casing and tubing installed in oil and gas wells?

  1. Casing assembly: Assemble individual pipes into tapered strings with decreasing diameters through threaded couplings.
  2. Casing running: Complete single-section drilling, withdraw drill string and lower casing into the borehole.
  3. Casing cementing: Pump cement slurry to fill the annular space for permanent fixation, and continue drilling after cement solidification.
  4. Tubing installation: Run production tubing inside cemented casing after well completion to form a fully enclosed and safe production system.

Q7: What quality inspection standards apply to your casing and tubing?

  1. Material & mechanical testing: Conduct chemical composition analysis and tests for tensile strength, yield strength, hardness and impact resistance.
  2. Pressure & NDT inspection: Perform full-length hydrostatic pressure testing and ultrasonic & electromagnetic non-destructive flaw detection.
  3. Dimensional calibration: Precisely inspect outer diameter, wall thickness, weight and thread tolerance to meet API 5CT tolerance standards.
  4. Certification support: Provide traceable MTC certificates, official API monogram, and optional SGS, BV, TÜV third-party inspection reports.

Q8: What are the core functions of casing and tubing in well operation?

  1. Wellbore protection: Casing bears complex downhole pressure and tension, stabilizes boreholes and prevents formation collapse.
  2. Formation isolation: Casing isolates high-pressure formations and avoids cross-contamination between groundwater and crude oil.
  3. Leakage prevention: Casing eliminates underground fluid leakage and reserves stable space for downhole equipment installation.
  4. Production transmission: Tubing acts as an independent transmission pipeline to deliver oil and gas to the surface, and protects casing from fluid erosion to extend well service life.
  • Prev : Flanges
  • Next : Drill Pipe
  • Tags : API 5CT casing , oil well casing , OCTG casing , J55 casing , K55 casing , N80 casing , L80 casing , P110 casing , Q125 casing , BTC casing , LTC casing , STC casing , seamless casing , ERW casing , surface casing , technical casing , production casing

Find what you need ?

close
We use cookies and other tracking technologies to improve your browsing experience on our website, to show you personalized content and targeted ads, to analyze our website traffic, and to understand where our visitors are coming from.
