Galvanized Steel Pipe

Short Description:


  • Keywords(pipe type): carbon steel pipeElectric Resistance Welded Steel Pipe (Round/Square/Rectangular)
  • Size : OD: 21.3mm ~ 610mm;WT: 0.5mm ~ 20mm;LENGTH: 0.3mtr ~ 18mtr, Ramdon Length, Fixed Length, SRL, DRL
  • Standard & Grade : GB/T 3091 Q195/Q215/Q235/Q345, BS 1387, EN 39, EN 1139 S235JR/S275JR, ASTM A53 GR. A/B/C, JIS G3444 STK 400/STK 500
  • Ends : Square Cut/Threaded, Burr Removed
  • Delivery: Delivery Time: Within 30 days and Depends on your order quantity
  • Payment: TT, LC , OA , D/P
  • Packing: Steel Strips bundled, Plastic Caps plugged, Waterproof Paper wrapped etc.
  • Usage: Used for transporting low pressure liquid, gas and heating
  • Description

    Specification

    Standard

    Painting & Coating

    Packing & Loading

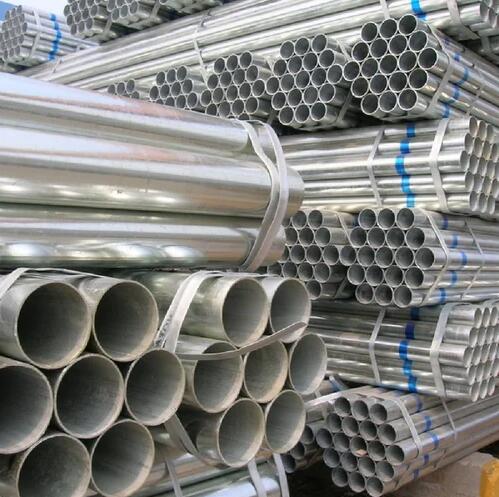

    Galvanized seamless pipe is divided into cold-plated steel seamless pipe and hot dip seamless pipe.

    Hot dip seamless pipe

    The Redu seamless pipe is to make the molten metal and iron substrate reaction, the alloy layer, so that the substrate and coating combination of both. Hot-dip galvanizing is the first steel pickling, in order to remove the steel pipe surface of iron oxide, pickling, aqueous solution of ammonium chloride or zinc chloride or ammonium chloride and zinc chloride mixed aqueous solution tank cleaning, and then send into the hot dip tank. Hot dip galvanized coating uniformity, strong adhesion, and long life.

    Cold-plated seamless pipe

    Cold galvanized, electro-galvanized, galvanized the amount of small, only 10-50g/m2 of its own resistance to corrosion than hot dip galvanized pipe a lot of difference. Regular galvanized pipe manufacturers, in order to ensure the quality, most do not use electro-galvanized (cold-plated). Only those small-scale, outdated equipment and small businesses with electric galvanized, of course, their prices are relatively cheap. The Ministry of Construction has formally below, cold galvanized pipe to eliminate backward technology, the future not be allowed to cold galvanized pipe for water, gas pipes.

    Galvanized seamless mechanical properties

    The mechanical properties of steel is to ensure that an important indicator of the steel end-use properties (mechanical properties), it depends on the chemical composition and heat treatment of steel. Steel standards, according to different requirements, the provisions of the tensile properties (tensile strength, yield strength or yield point elongation) and hardness, toughness, user requirements, high and low temperature performance.


  • Previous:
  • Next:

  • Application:

    1.Building and structural material

    2.Mechanical and general engineering purposes

    3.Manufacturing of Bus Body, Railway Boogies

    4.In Telephone department as Conduit Pipes

    Material Inspection (Steel Pipe) — Hanging — De-greasing — Rinsing — Pickling — Washing — Dipping Fluxing — Hot Air Drying — Inside and Outside Hot-dipped Galvanizing Blow— Cooling — Passivation and Rising — Unloading — Inspection and Trimming — Type Identification — Packaging and Storing and Transportation



    Types: Galvanzied welded steel pipe, galvanzied seamless steel pipe
    Materials: Carbon steel
    Connection type: threaded
    Size range:1/8″-36″
    Schedule: sch40, sch80, sch120, sch160, XH, XXH



    Length of the galvanized tubes
    - in diameter 4 – 16 mm 6000 + 100 mm
    - in diameter 18 – 42 mm 6000 + 50 mm

    Tolerances of the zinc coated tubes
    - tolerances of the outside diameter:
    - diameter between 4 – 30 mm ±0,08 mm
    - diameter between 35 – 38 mm ±0,15 mm
    - diameter up to 42 mm ±0,20 mm
    - tolerances of the inside diameter are according to EN 10305-4
    - tolerance of the wall thickness ± 10%

    The Steel grades for the zinc coated tubes
    E 235+N and E 355+N

    Galvanized Steel Pipe-01

    Surface condition of the galvanized tubes
    First layer electrolitically leached zinc (Zn) acts as anode and in a corrosive environment it corrodes first and the base metal is cathodically protected against corrosion. The zinc layer thickness may be in the range of 5 to 30 micrometers (µm).

    Galvanized Steel Pipe-05 Galvanized Steel Pipe-03 Galvanized Steel Pipe-06 Galvanized Steel Pipe-04
