What Is a Honed Tube

Date: 2026-07-20

Hydraulic cylinders are only as reliable as the tubes they are built from. Even a high-quality piston seal cannot perform properly if the cylinder bore has poor roundness, excessive roughness, or inconsistent dimensions. These seemingly small imperfections can lead to oil leakage, increased friction, and premature component wear. A honed tube is specifically engineered to solve these challenges. Through a precision honing process, the tube's internal surface is refined to achieve excellent dimensional accuracy and an exceptionally smooth finish, making it ideal for hydraulic and pneumatic cylinder manufacturing. In this guide, we'll explain what a honed tube is, how it is manufactured, why honing is necessary, where honed tubes are used, and what to consider when selecting one for your project.

What Is a Honed Tube?

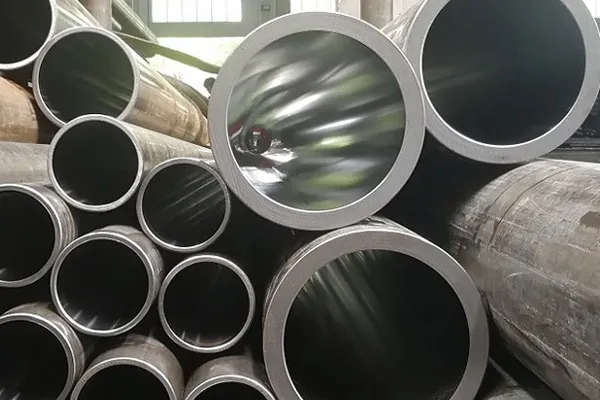

A honed tube is a seamless or Drawn-Over-Mandrel (DOM) steel tube that has undergone precision internal machining through a honing process. Unlike standard steel tubes, honed tubes feature a highly accurate internal diameter, excellent roundness, and a controlled surface finish suitable for sealing applications.
Typical specifications include:

Property	Typical Value
ID Tolerance	H7–H9
Surface Roughness	Ra 0.2–0.8 μm
Straightness	Customized to project requirements
Tube Length	Up to 12 m

The primary purpose of honing is to create a precision bore that allows hydraulic seals to operate efficiently while minimizing friction and extending service life. From our experience supplying hydraulic cylinder manufacturers, inside diameter tolerance and bore finish are often more critical than the steel grade itself, as they directly influence sealing performance and assembly quality.

Why Is Honing Necessary?

Standard seamless or DOM tubes generally cannot meet the precision required for hydraulic cylinders without additional machining. The honing process helps to:

Remove machining marks left after tube production
Improve roundness and cylindricity
Achieve precise inside diameter tolerances
Produce a controlled cross-hatch surface pattern
Improve lubricant retention
Extend piston seal service life
Reduce friction during cylinder operation

Rather than simply making the tube smoother, honing creates a functional internal surface designed for long-term hydraulic performance.

How Does a Honed Tube Work?

Inside a hydraulic cylinder, the piston moves repeatedly while hydraulic oil forms a thin lubricating film between the piston seal and the cylinder wall. A properly honed surface supports this movement by combining low roughness with a uniform cross-hatch pattern. This microscopic pattern retains lubricating oil, reduces metal-to-metal contact, and promotes stable sealing throughout continuous operation. Compared with ordinary tubes, honed tubes provide:

Feature	Standard Steel Tube	Honed Tube
Bore Finish	Standard	Precision Honed
ID Accuracy	General Tolerance	H7–H9
Surface Friction	Higher	Lower
Seal Performance	Moderate	Excellent
Hydraulic Applications	Limited	Ideal

How Is a Honed Tube Manufactured?

A high-quality honed tube is produced through several carefully controlled manufacturing stages: Raw Material Selection → Cold Drawing (if required) → Stress Relieving → Precision Honing → Cleaning → Dimensional Inspection → Surface Roughness Testing → Final Inspection & Packaging.
The honing stage is the most critical. Abrasive stones rotate and reciprocate inside the tube while machining parameters—including stone pressure, spindle speed, and feed rate—are carefully controlled to achieve consistent bore geometry across the entire tube length.

Common Materials and Specifications

Honed tubes are available in a wide range of materials to meet different operating conditions.

Item	Typical Specification
Inside Diameter	30–500 mm
Outside Diameter	40–600 mm
Length	Up to 12 m
Surface Roughness	Ra 0.2–0.8 μm
Materials	ST52, E355, SAE 1026, ASTM A519, CK45

Dimensions, tolerances, and surface finishes can all be customized according to project requirements.

How to Choose the Right Honed Tube

Selecting a honed tube involves more than choosing a material grade. Consider the following factors:

Working Pressure – Determines required wall thickness and material strength.
Inside Diameter – Must match piston dimensions accurately.
Surface Finish – Should meet seal manufacturer recommendations.
Material Grade – Selected according to pressure, wear resistance, and corrosion environment.
Dimensional Tolerance – H7 is typically preferred for high-precision hydraulic cylinders.
Manufacturing Quality – Consistent bore geometry and complete inspection records reduce installation risks.

From our export experience, OEM hydraulic cylinder manufacturers generally specify bore tolerance and surface finish before confirming the material grade because these factors have the greatest impact on sealing reliability.

Quality Inspection Before Delivery

Reliable performance starts with thorough inspection. Typical quality control includes:

Raw material verification
Chemical composition analysis
Inside diameter measurement using precision gauges
Surface roughness testing
Straightness and roundness inspection
Ultrasonic Testing (UT), when specified
Visual inspection
Mill Test Certificate (MTC) and full material traceability

Complete inspection documentation helps simplify customer acceptance and supports international project requirements.

FAQ

Q1: What is the difference between a honed tube and a seamless tube?
A1: A seamless tube is the base material. A honed tube is a precision-machined product whose internal bore has been finished to achieve strict dimensional tolerances and surface quality.
Q2: Which is better: seamless or DOM honed tube?
A2: Both are widely used. The choice depends on cylinder design, pressure requirements, and mechanical property specifications.
Q3: Can honed tubes be customized?
A3: Yes. Inside diameter, outside diameter, wall thickness, length, material grade, tolerance, and surface finish can all be manufactured to customer specifications.

Conclusion

A honed tube is more than a steel tube with a smooth bore—it is a precision component that directly influences hydraulic cylinder efficiency, sealing performance, and equipment reliability. By combining accurate machining, controlled surface finishing, and rigorous quality inspection, honed tubes provide the dimensional consistency required for demanding industrial applications. Choosing an experienced manufacturer ensures not only precise machining but also dependable material traceability, comprehensive inspection documentation, and consistent product quality throughout every project. Hunan Great Steel Pipe Co., Ltd. supplies customized honed tubes and hydraulic cylinder tubes for construction machinery, mining equipment, industrial automation, and hydraulic system manufacturers worldwide. Our engineering team works closely with OEMs and EPC contractors to provide precision-machined tubing solutions backed by strict quality control, complete material traceability, and compliance with ASTM, EN, and DIN standards.
