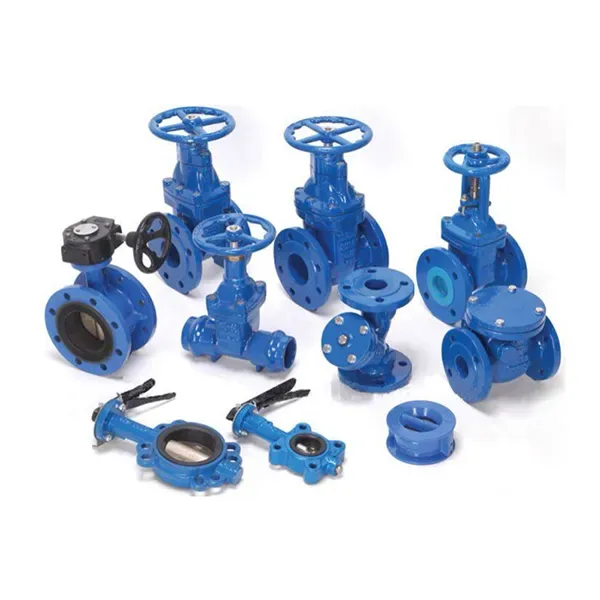

Valve

Keywords: Gate Valve, Ball Valve, Butterfly Valve, Globe Valve, Check Valve, Plug Valve, Needle Valve, Safety Valve
Size: DN15 – DN1200
Pressure Rating: Class 150 – Class 2500
Working Temperature: -196°C to 600°C
Material: Carbon Steel, Stainless Steel, Alloy Steel, Cast Iron, Ductile Iron, Brass, Bronze, Duplex Stainless Steel, and other special materials
Surface: Anti-corrosion coating, Galvanizing, Epoxy coating, Sand blasting, Polishing, Heat treatment
Connection Types: Flanged, Threaded, Socket Weld, Butt Weld, Clamp End

Perhaps you would like to contact us via email. Please click on the link below to send us an emailinfo@hnssd.com

Get A Quote

Leave Your Requirement Information

Product Detail
Specification
Type
Painting & Coating
Packing & Loading
FAQ

Product introduction of the Valve:

What is a Valve?
A valve is a mechanical device used to control, regulate, direct, or isolate the flow of liquids, gases, steam, or other media within a piping system. By opening, closing, or partially obstructing the flow passage, valves help maintain system efficiency, safety, and operational stability. Industrial valves are essential components in modern pipeline systems and are designed to withstand high pressure, high temperature, corrosion, and complex operating conditions.

The features of the Valve
- High sealing performance and leak prevention
- Excellent corrosion resistance and durability
- Stable operation under high pressure and high temperature
- Precision machining for accurate flow control
- Long service life with low maintenance requirements
- Compliance with international manufacturing standards
- Available in multiple materials, sizes, and connection types

- Suitable for manual, pneumatic, electric, and hydraulic operation

Manufacturing Process of the Valve
Our valve production process follows strict quality management procedures to ensure precision, reliability, and compliance with global standards.
Manufacturing Steps: Raw Material Inspection - Casting or Forging - CNC Machining - Assembly and Fitting - Surface Treatment - Pressure and Leakage Testing - Quality Inspection - Packaging and Delivery

Testing Standards of the Valve
Hydrostatic Testing;
Air Pressure Testing;
Sealing Performance Testing;
Strength Testing;
Dimensional Inspection;
Non-Destructive Testing (NDT);
All products are inspected before shipment to ensure stable and reliable performance.

Flanged-end Gate, Globe & Check
Sizes: 1/2″ to 24″
Pressures: 125# to 2500#

Screwed / Socketweld Gate, Globe & Check
Sizes: 1/4″ to 2″
Pressures: 150# to 300# to 600#
Other Specifications: Bolted and Screwed Bonnet / Cover

Forged Gate, Globe & Check
Sizes: 1/2″ to 2″
Pressures: 800# to 1500# to 2500#
Other Specifications: Threaded and Socketweld End Piston and Swing Checks
Materials: Stainless Steel Gate Valves

Flanged-end Industrial Ball Valves
Sizes: 1/2″ to 16″
Pressures: 150# to 1500#
Other Specifications: Reduced and Fullport, Level and Gear Operated

Screwed / Socketweld Ball Valves
Sizes: 1/4″ to 4″
Pressures: 150# to 3000#
Other Specifications: 1pc, 2pc, & 3 pc design, Reduced and Fullport, Locking Device and Oval Handles Available

Plug Valves
Sizes: 1/2″ to 12″
Pressures: 150# to 300#
Other Specifications: Screwed / Socketed / Flanged, Level & Gear Operated

Types of Valves

No.	Types	Picture	Description	Specification

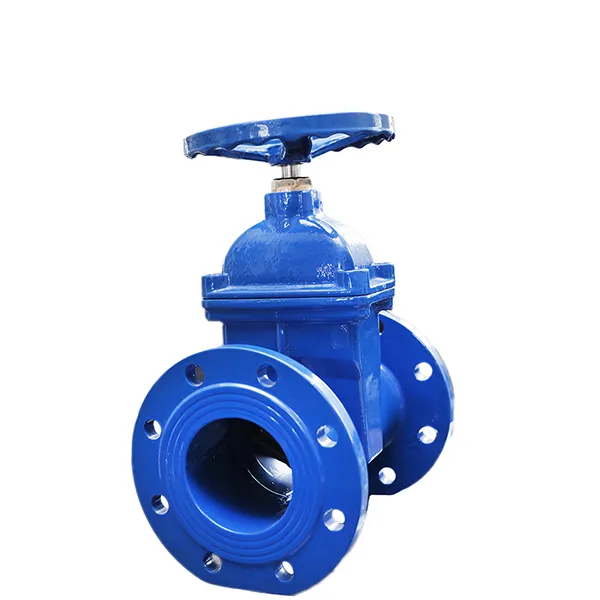

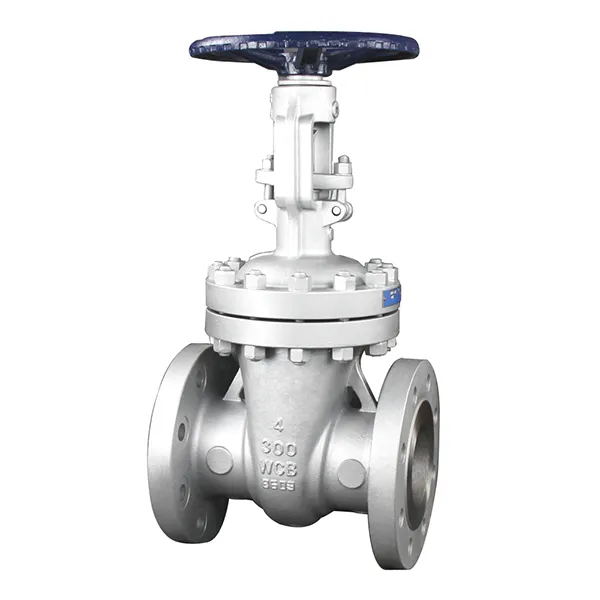

1	Gate Valve		A Gate Valve is a type of linear-motion valve used to start or stop the flow of fluid in a piping system. It operates by lifting a rectangular or circular gate (or wedge) out of the path of the fluid, providing either full flow or complete shut-off.	- Size (NPS): 1/2" – 108" (DN 15 – DN 2700) - Pressure: Class 150# – 2500# (PN 6 – PN 420) - End Connections: Flanged (RF/RTJ/FF), Butt Weld (BW), Socket Weld (SW), Threaded (NPT/BSP), Grooved - Operation: Handwheel, Gearbox, Electric Actuator, Pneumatic Actuator, Hydraulic Actuator - Temperature Range: -196°C to +650°C (depending on material)
2	Ball Valve		A Ball Valve is a quarter-turn valve that uses a hollow, perforated, and pivoting ball to control the flow of fluid. When the ball's hole is aligned with the flow direction, the valve is open; when rotated 90 degrees, the solid side of the ball blocks the flow path, shutting off the valve.	- Size (NPS): 1/2" – 108" (DN 15 – DN 2700) - Pressure: Class 150# – 2500# (PN 6 – PN 420) - End Connections: Flanged (RF / RTJ / FF), Butt Weld (BW), Socket Weld (SW), Threaded (NPT/BSP), Grooved - Operation: Handwheel, Gearbox, Electric/Pneumatic/Hydraulic Actuator - Temperature: -196°C to +650°C (material dependent)
3	Butterfly Valve		A Butterfly Valve is a quarter-turn rotational valve that uses a circular disc (the "butterfly") mounted on a rotating shaft to regulate or isolate flow. When the valve is open, the disc is turned parallel to the flow direction, presenting minimal resistance. When closed, the disc rotates 90° to seal against a seat, blocking the flow path.	- Size (NPS): 1/2" – 108" (DN 15 – DN 2700) - Pressure: Class 150# – 2500# (PN 6 – PN 420) - End Connections: RF / RTJ / FF Flanged, Butt Weld (BW), Socket Weld (SW), Threaded (NPT/BSP), Grooved - Operation: Handwheel, Gearbox, Electric Actuator, Pneumatic Actuator, Hydraulic Actuator - Temperature Range: -196°C to +650°C (material dependent)
4	Globe Valve		A Globe Valve is a linear-motion control valve designed primarily for throttling (flow regulation) and frequent on/off operation. Unlike a gate valve that lifts a gate completely out of the flow path, a globe valve moves a disc (plug) against or away from a stationary seat ring, changing the flow area to precisely control pressure and flow rate.	- Size: 1/2" – 108" (DN 15 – DN 2700) - Pressure: Class 150# – 2500# (PN 6 – PN 420) - Temperature: -196°C to +650°C - End Connections: RF / RTJ / FF Flanged, BW, SW, Threaded, Grooved - Operation: Handwheel, Gearbox, Electric/Pneumatic/Hydraulic Actuator
5	Check Valve		A Check Valve (also called a Non-Return Valve or NRV) is an automatic, self-acting valve that allows fluid to flow in one direction only and prevents backflow when the flow stops or reverses. It requires no external operation—it opens by the forward pressure of the fluid and closes by gravity, spring force, or reverse flow pressure.	- Size (NPS): 1/2" – 108" (DN 15 – DN 2700) - Pressure: Class 150# – 2500# (PN 6 – PN 420) - End Connections: RF / RTJ / FF Flanged, Butt Weld (BW), Socket Weld (SW), Threaded (NPT/BSP), Grooved - Operation: Handwheel, Gearbox, Electric/Pneumatic/Hydraulic Actuator - Temperature Range: -196°C to +650°C (material dependent)

Light Oil, Black Painting

Q1: When should I use a Gate Valve vs. a Ball Valve?
A:
- Gate Valve: For infrequent isolation of clean fluids where minimal pressure drop is critical (e.g., main pipeline block valves).
- Ball Valve: For frequent on/off operation, quick emergency shut-off, or automated remote operation. Never use a gate valve for throttling.

Q2: What is the difference between a Globe Valve and a Gate Valve?

A: A globe valve is designed for throttling and flow regulation (high pressure drop, frequent operation). A gate valve is designed only for full open/full closed isolation. Using a gate valve to throttle flow will destroy the seats.

Q3: Can I use a Butterfly Valve for high-pressure steam?

A: Standard rubber-lined butterfly valves are not suitable for high-pressure steam. However, triple-offset metal-seated butterfly valves can handle high pressure and temperature, often replacing gate or ball valves in large bore applications.

Q4: What is the difference between a Check Valve and a Gate Valve?

A: A check valve operates automatically to prevent backflow; it cannot be manually opened or closed. A gate valve is manually operated for isolation but does nothing to prevent reverse flow.

Q5: Plug Valve vs. Ball Valve—which is better?

A: For clean, general service, ball valves are more common. For dirty, abrasive, or viscous media (crude oil, slurry), plug valves are superior because their design tolerates contamination better and they offer multi-port switching capability.

Q6: When do I need a Needle Valve instead of a Globe Valve?

A: Needle valves are for very small flow rates and precise metering (instrumentation, sampling). Globe valves are for pipeline flow regulation. If your line is under 2" and you need fine adjustment, use a needle valve.
