What Is a Finned Steel Tube

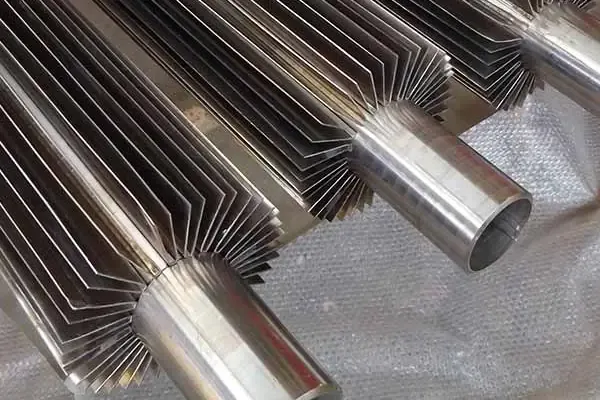

Why spec a finned steel tube over a plain one? Because air is a terrible heat transfer medium. Plain tubes can't compensate — finned tubes can, by multiplying the external surface area 5 to 15 times. That's why you find them in power plant air-cooled condensers, refinery air coolers, waste heat recovery units, and HVAC evaporator coils. A finned steel tube is a steel tube with metal fins attached to its outer surface. The base tube carries pressurized process fluid — liquid or gas. The fins extend outward, increasing the heat exchange area and balancing the poor heat transfer coefficient of air. Base tube materials: Carbon steel (SA106 Gr.B, SA53-B), stainless steel (304, 316L), alloy steel (P91, P22), or specialty alloys. Fin materials: Aluminum (most common), copper (higher conductivity, heavier), carbon steel (high-temperature), or stainless steel (corrosion resistance).

How Finned Steel Tubes Work

Heat moves from the process fluid to the tube wall by convection. It conducts through the wall into the fins, then transfers to surrounding air over the expanded surface area. The fins compensate for air's poor heat transfer coefficient:

• Water-side coefficient: 1,000–3,000 W/m²·K
• Air-side coefficient: 10–100 W/m²·K

Without fins, air-side resistance dominates. With fins, effective surface area balances the equation — more heat transferred in less space. Fin efficiency matters too. Aluminum and copper conduct heat well to fin tips. Steel fins have lower conductivity, so steel designs typically use shorter fins or lower densities than aluminum.

Types of Finned Steel Tubes

High-Frequency Welded (HFW) Finned Tubes

Steel strip is continuously welded onto the tube OD using high-frequency electrical resistance welding. The metallurgical bond delivers excellent heat transfer and mechanical strength.

• Temperature limit: ~450°C
• Applications: Boilers, economizers, air coolers, fired heaters
• Advantage: Strong bond for high-temperature service
• Disadvantage: Weld area can corrode if coating is damaged

Extruded Finned Tubes

An aluminum sleeve is mechanically extruded over the base tube. Fins form from a continuous metal layer — no separate fin strip. The aluminum fully encloses the base tube.

• Temperature limit: 250–300°C
• Applications: Offshore platforms, marine environments, chemical plants
• Advantage: Full corrosion protection, no crevices
• Disadvantage: Lower temperature limit

Embedded (G-Type) Finned Tubes

A helical groove is machined into the tube OD. Fin strip is embedded and mechanically locked in place.

• Temperature limit: Up to 450°C
• Applications: High-temperature heat recovery, fired heater convection sections
• Advantage: Tube wall not thinned by welding
• Disadvantage: Fins can loosen under thermal cycling

Spiral Wound Finned Tubes

Metal strip is helically wrapped around the tube and secured by welding at the ends or by tension alone. Lowest-cost option.

• Temperature limit: Welded ends ~400°C; tension-only lower
• Applications: Air-cooled heat exchangers, dry cooling towers
• Advantage: Low cost
• Disadvantage: Tension-wound fins loosen over time with thermal cycling

Applications

Finned steel tubes are specified wherever one side has significantly lower heat transfer coefficient than the other:

• Air-cooled heat exchangers (ACHEs): Refinery and petrochemical process cooling
• Industrial boilers: Economizer and superheater sections
• Waste heat recovery units (WHRUs): Gas turbine exhaust heat capture
• Power generation: Air-cooled condensers, feedwater heaters
• HVAC systems: Evaporator coils, condenser coils, unit heaters
• Process heaters: Convection section tubes in reformers and crackers
• Dry cooling towers: Replace water-cooled systems in water-scarce regions
• Oil and gas processing: Compressor aftercoolers, gas coolers

Typical fin densities range from 4 to 16 fins per inch. Higher density increases surface area but also air-side pressure drop. Selection should balance heat transfer against allowable pressure drop.

Selection Criteria

Temperature rules out materials. Below 250°C: aluminum fins work. 250–450°C: welded steel fins. Above 450°C: embedded fins with alloy tubes — or redesign. Specifying aluminum at 400°C causes creep and fin tension loss within months.

Corrosion decides the tube material. Marine environments suit extruded aluminum fins protecting carbon steel base tubes. But if process fluid contains chlorides, the base tube needs 316L or duplex stainless — regardless of fin material.

Vibration and thermal cycling matter. Embedded and welded fins handle cycling better than tension-wound. Welded fins resist vibration better than embedded. Tension-wound works for steady-state service — not for compressor discharge pulsation.

Manufacturing quality determines service life. Specify bond integrity testing for welded and extruded fins. Require dimensional checks: fin height, pitch, OD tolerance. Demand hydrostatic testing on base tubes. Insist on material certificates (MTCs) for both tube and fin materials. Use PMI if alloy tube is specified.

Frequently Asked Questions

Q1: How much does finning increase heat transfer area?
A: Typically 5 to 15 times, depending on fin density, height, and thickness.

Q2: What is the maximum temperature for aluminum-finned tubes?
A: 250–300°C for extruded aluminum. Above this, aluminum creeps and loses mechanical grip.

Q3: How long do finned steel tubes last?
A: When correctly specified, 20+ years. Wrong material combinations cause failure within months.

Q4: What fin density should I specify?
A: 4–16 fins per inch is standard. Match density to your allowable fan power and pressure drop budget.

Summary

Finned steel tubes increase heat transfer area by 5-15×, enabling smaller, more efficient heat exchangers. HFW welded tubes suit high-temperature boiler service. Extruded aluminum fins protect against marine corrosion. Embedded fins handle thermal cycling. Spiral wound is the low-cost option for steady-state air cooling. Selection comes down to temperature, corrosion, mechanical stress, and manufacturing quality — in that order. Get the material combination wrong, and fin failure happens within months. Get it right, and finned tubes run 20+ years with minimal degradation.
